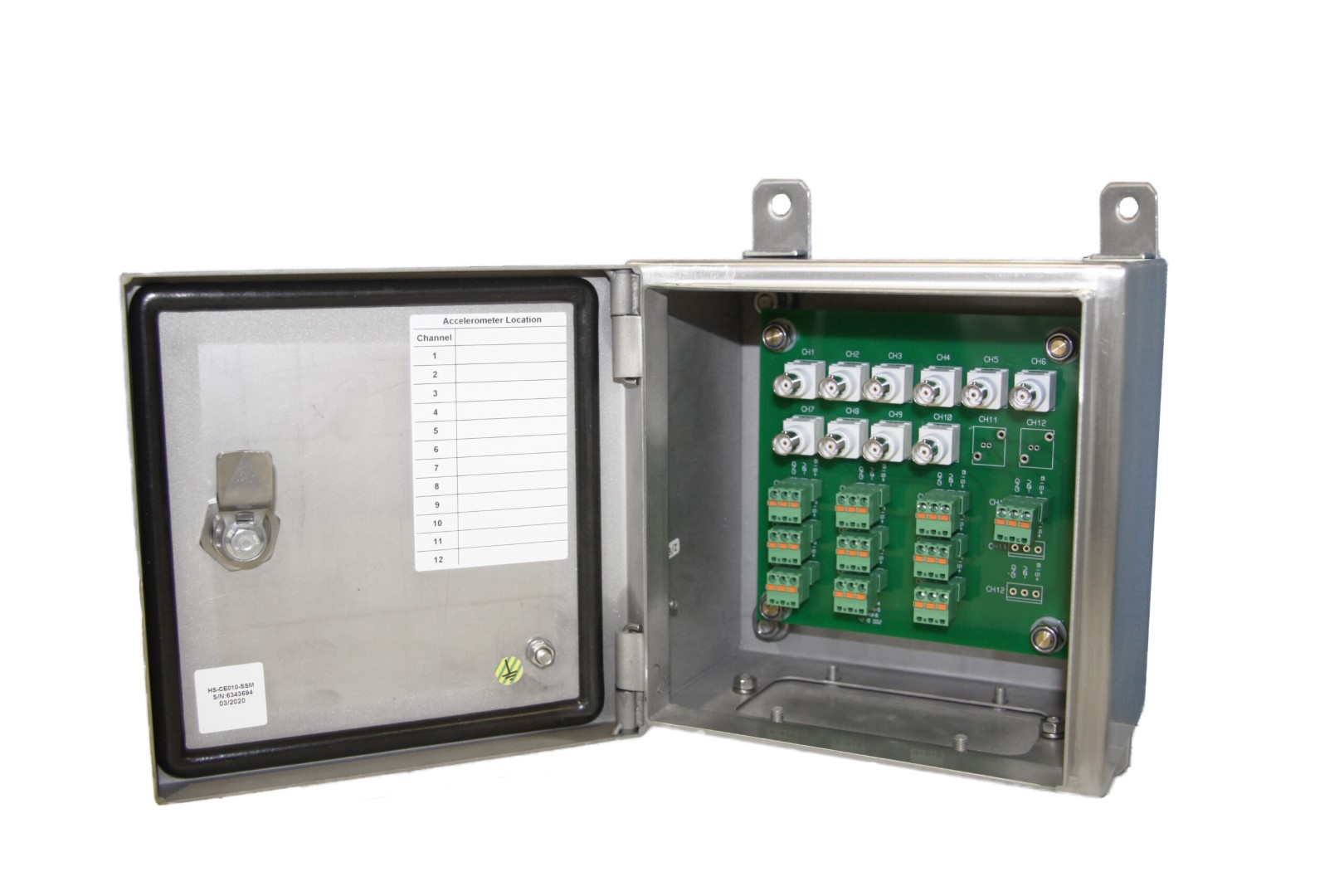

HS-CE-SSM Anschlussgehäuse

Stainless Steel

HS CE SSM scaled

Key Features

  • Bietet ein Terminal, um über einen tragbaren Datensammler Messwerte von Beschleunigungsmessern zu erfassen
  • Mehrere Ausgänge über mehrere Anschlüsse

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Zusätzliche Informationen

Merkmal

Industrial, Multi Sensor
Eingaben

Via accelerometer
Ausgabe

BNC as standard
Montageplatte

PCB Panel
Material

304 Stainless Steel (to be specified in options of ‘How To Order’ table)
Abmessungen

see: ‘How To Order’ table
Versiegeln

IP66
Terminierung

Spring-loaded terminal (no screwdriver required)
Tür

Lock and polyamide key
Stopfbuchse

Glands supplied but not fitted, Holes are punched for:, Multi input M20 – 3 x ø5.3mm/ ø0.2in, Single input M12 – ø3.5-7mm/ ø0.1-0.3in cable, Single input M20 – ø7-13mm/ ø0.3-0.7in multi-core cable
Kennzeichnung

Channel locations – other labelling available upon request
Montage

supplied are 4 x Brackets
EMC

EN61326-1:2013

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

Connection-Details

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
