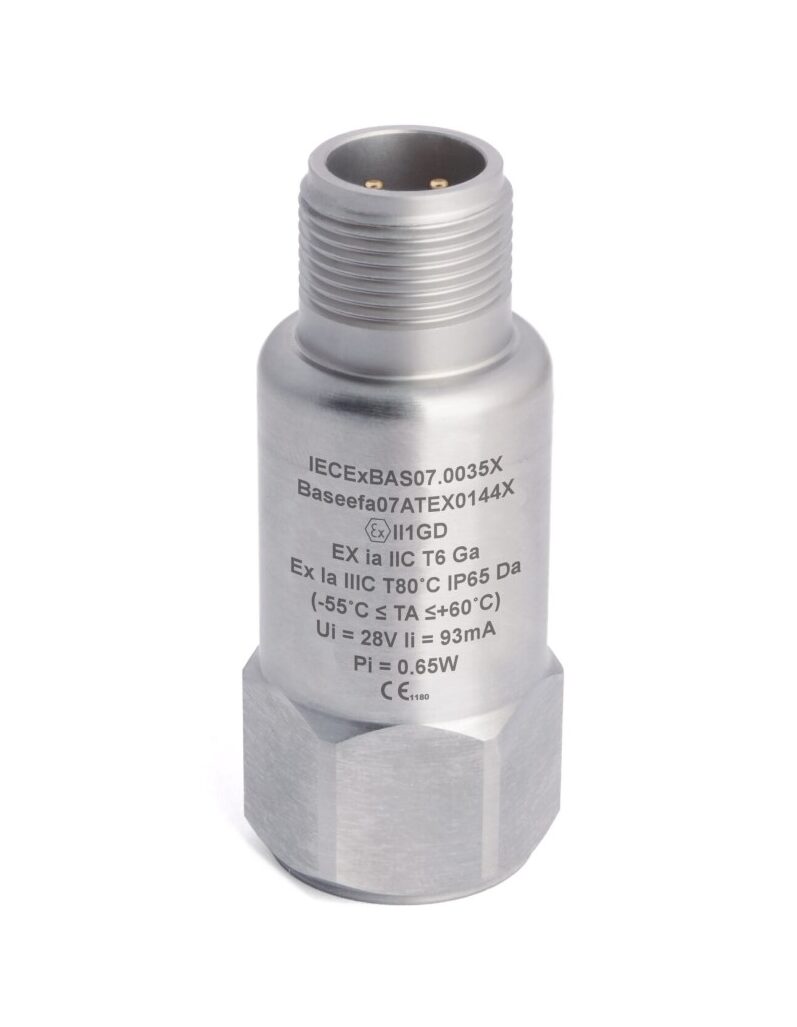

HS-104I – Top Exit – 3 Pin MS ATEX Low Power Accelerometer

100mV/g AC acceleration output via 3 Pin MS Connector

HS 100I1005008 new size large scaled

Key Features

  • Intrinsically Safe with European, USA and Australian approvals
  • Low voltage
  • Ultra low power consumption
  • Customisable features
  • Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment



HS HS

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Sealing

IP68
EMC

EN61326-1:2013
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Shear
Weight

106gms / 3.7 oz (nominal) body only
Screened Cable Assembly

see: www.hansfordsensors.com for options
Top/Side Entry

Top Entry
Feature

Intrinsically Safe, Low Power
Design

Standard
Connector/Cable Type

3 Pin MS Connector
Output

Single Output
Axis

Single (Standard)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

Zener-System-DrawingSafety-Barriers-GuideStuds-fitting-instructionsTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
