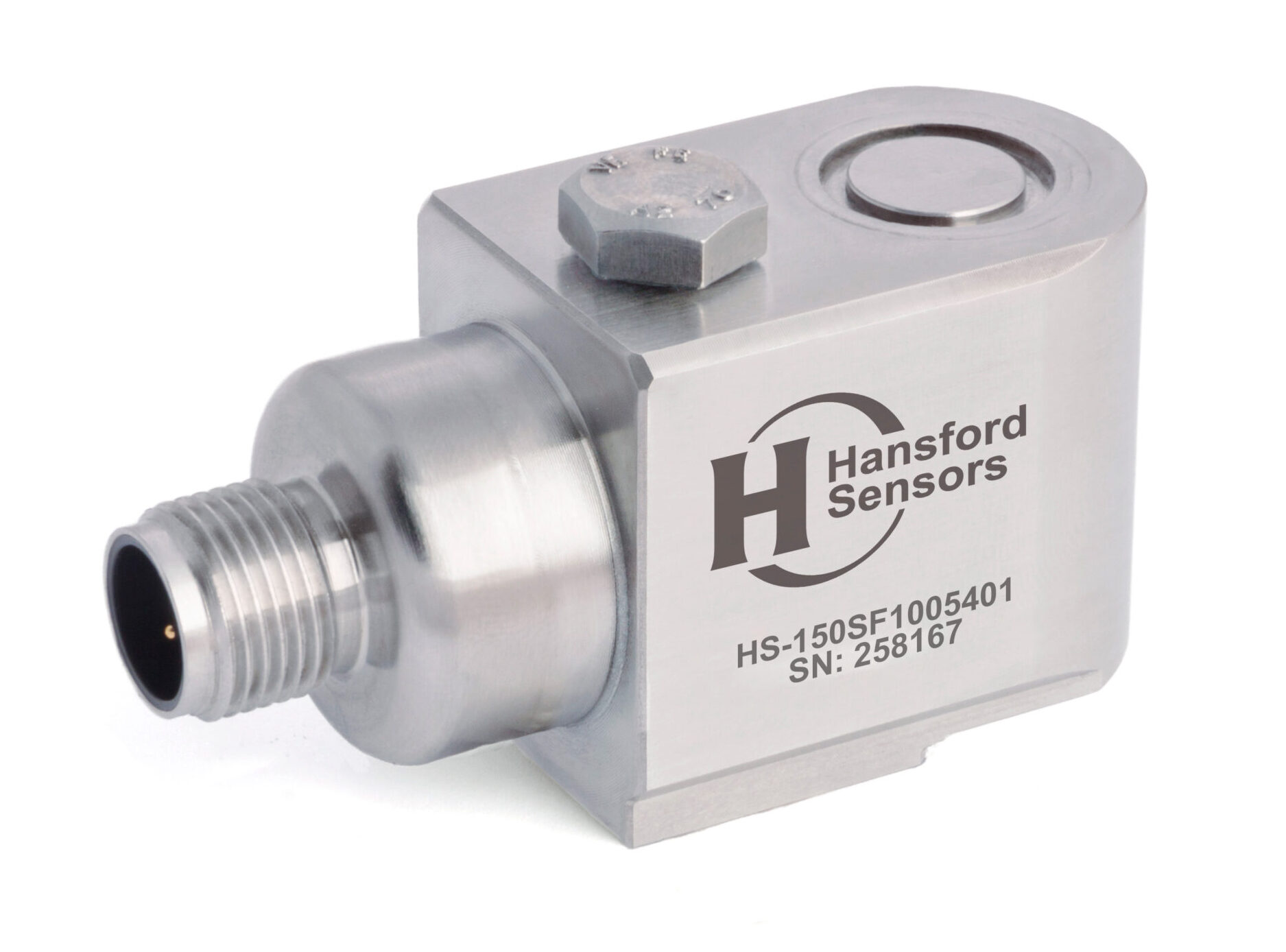

HS-150SF – Side Exit – Filtered 4 Pin M12 Accelerometer

100mV/g AC acceleration output via M12 Connector

HS 150SF1005401

Key Features

  • Premium design
  • Side entry for easy access
  • Filtered output
  • Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Operating Temperature Range

-55 to 150°C, -67 to 300°F
Sealing

IP67
EMC

EN61326-1:2013
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Shear
Weight

205gms/ 7.2 oz (nominal) body only
Screened Cable Assembly

HS-AC010 – straight, HS-AC011 – right angle
Top/Side Entry

Side Entry
Design

Premium
Feature

Low Power
Connector/Cable Type

M12 Connector
Output

Single Output
Axis

Single (Standard)

Datasheets

Metric DatasheetImperial DatasheetTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

Quality PolicyEnvironmental PolicyMTTFByhon MTTF
There are no recommended accessories at this time.
