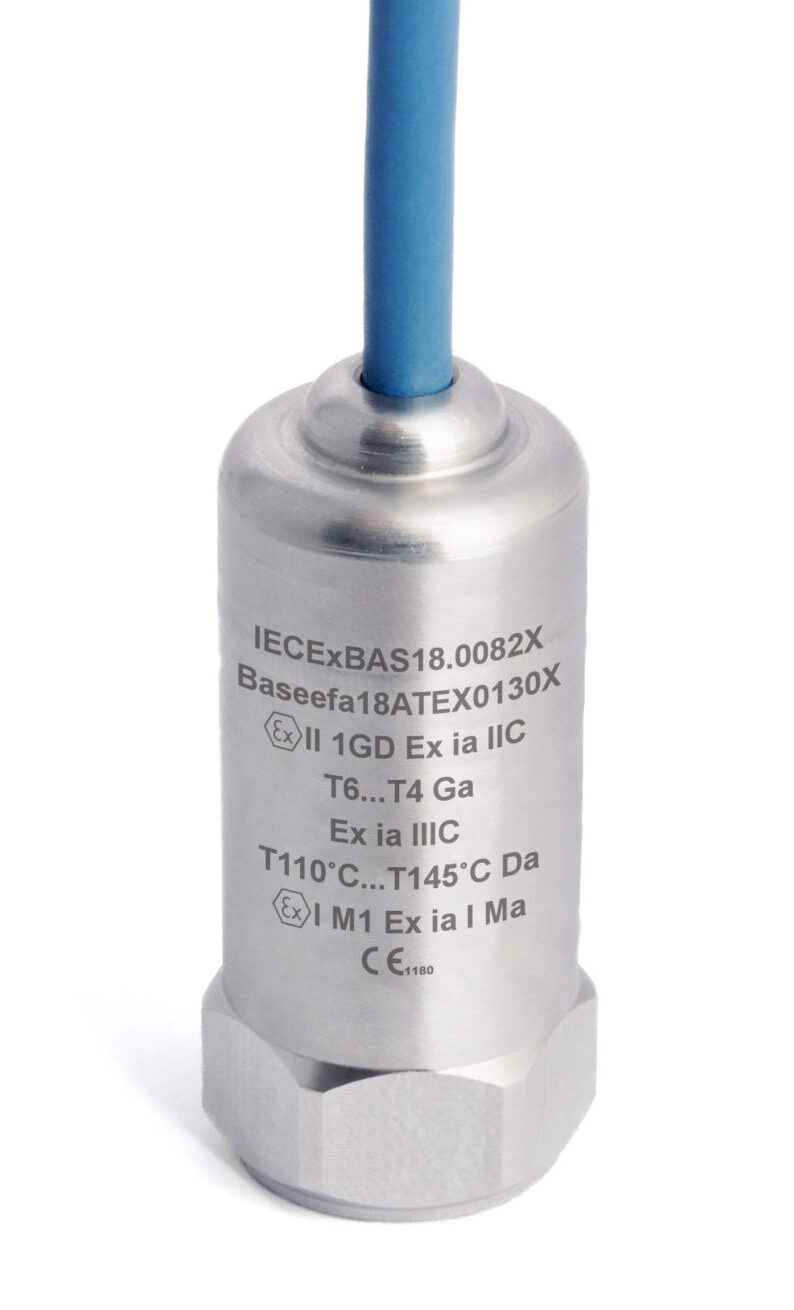

HS-170I – Top Exit – Compact Integral FR Cable Intrinsically Safe Accelerometer

100mV/g AC acceleration output via Flame Retardant Cable

HS 170I1000801 fr

Key Features

  • Intrinsically Safe with European, USA, Indian and Australian approvals
  • Compact design
  • Premium design
  • Customisable features
  • Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment



How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Sealing

IP65
EMC

EN61326-1:2013
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Shear
Weight

52gms/ 1.8 oz (nominal) body only
Top/Side Entry

Top Entry
Design

Premium
Feature

Compact Design, Intrinsically Safe
Connector/Cable Type

Flame Retardant Cable
Output

Single Output
Axis

Single (Standard)

Datasheets

Imperial DatasheetMetric Datasheet

Product documentation guides

Max-Cable-Length-GuideSafety-Barriers-GuideStuds-fitting-instructionsTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

3D CAD ModelQuality PolicyEnvironmental PolicyMTTFByhon MTTF
There are no recommended accessories at this time.
