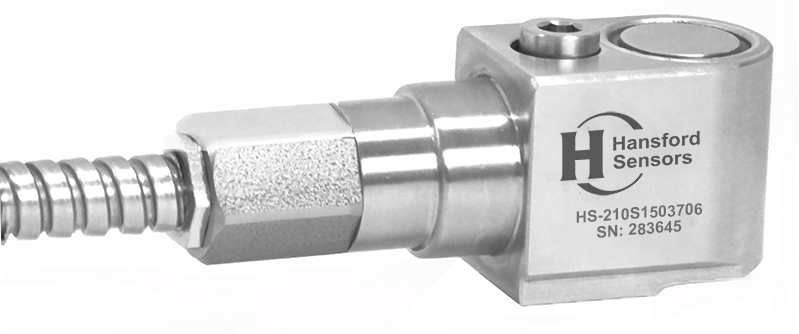

HS-210S Temperature Sensor

only temperature output via Polyolefin HFFR with Protective Conduit

HS 210S

Key Features

  • Temperature output
  • For use with data collector
  • Side entry for easy access

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Operating Temperature Range

-55°C to see ‘How To Order’ table for max
Sealing

IP68
EMC

EN61326-1:2013
Case Material

Stainless Steel
Top/Side Entry

Side Entry
Design

Standard
Feature

Temperature Only
Connector/Cable Type

4 Core Screened Polyolefin HFFR Cable Protective Conduit
Output

Single Output
Axis

Single (Standard)

Datasheets

Imperial DatasheetMetric Datasheet

Product documentation guides

Studs-fitting-instructionsTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

Quality PolicyEnvironmental PolicyMTTFByhon MTTF
