HS-422I/M – Top Exit – 4 Pin M12 Intrinsically Safe Accelerometer

4-20mA acceleration output via M12 Connector

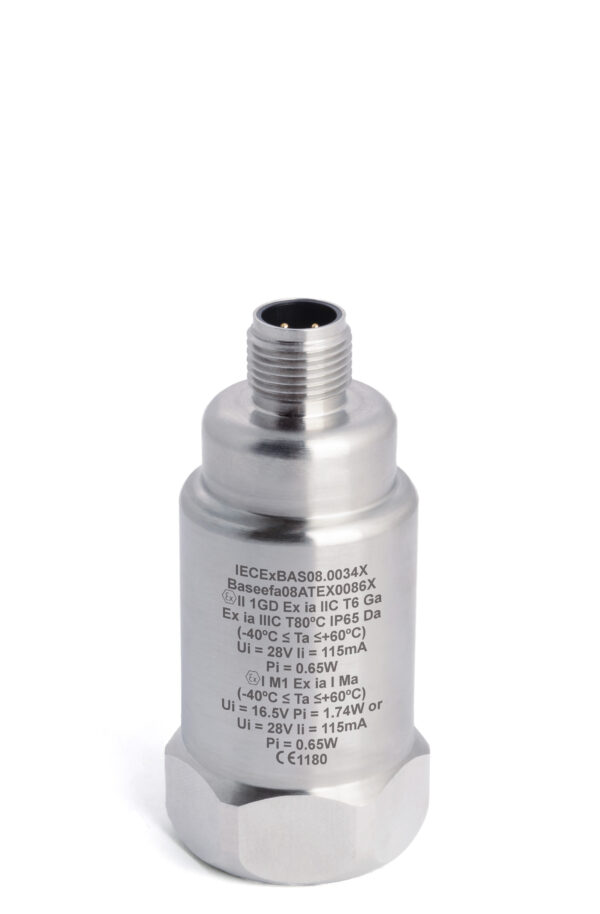

HS 420I0205401 large scaled

Key Features

  • Intrinsically Safe with European, USA, Australian, South African, and Indian approvals
  • Approved SIL 2 and SIL 3
  • For use with PLC/DCS systems
  • Customisable features
  • Compression Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment



HS HS HS HS HS



How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Sealing

IP67
EMC

EN61326-1:2013
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Compression
Weight

150gms/ 5.2 oz (nominal)
Screened Cable Assembly

HS-AC010 – straight, HS-AC011 – right angle
Top/Side Entry

Top Entry
Feature

Intrinsically Safe
Connector/Cable Type

M12 Connector
Output

4-20mA Acceleration
Axis

Single (Standard)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

Cable Length GuideHS-422I-User-GuideIntegral Display FUW HS-422ISafety-Barriers-GuideSet up with Barrier and Trip ModuleStuds-fitting-instructions

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

Quality PolicyEnvironmental Policy
There are no recommended accessories at this time.
