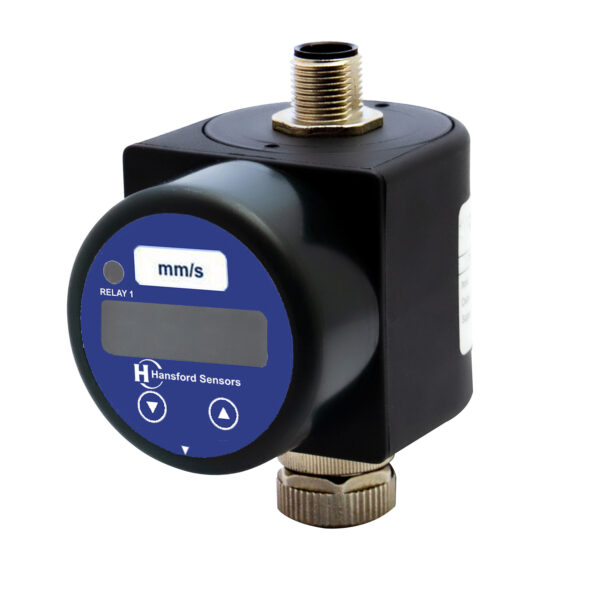

HS-517 Vibration Trip Display

with LED display

HS 517 scaled

Key Features

  • Fully configurable
  • Relay Function
  • 4 Digit LED Display
  • Suitable for HS-420 & HS-422 Series
  • Display turns 330°
  • Connector turns 300°



How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Feature

Display Units
Case Material

Polycarbonate
Weight

150gms/ 5.2 oz (nominal)
Operating Temperature Range

see: attached certification details
Sealing

IP65
EMC

2014/30/EU

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

HS-517 ManualHS-517 Set Up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
