HS-540 Vibration Module

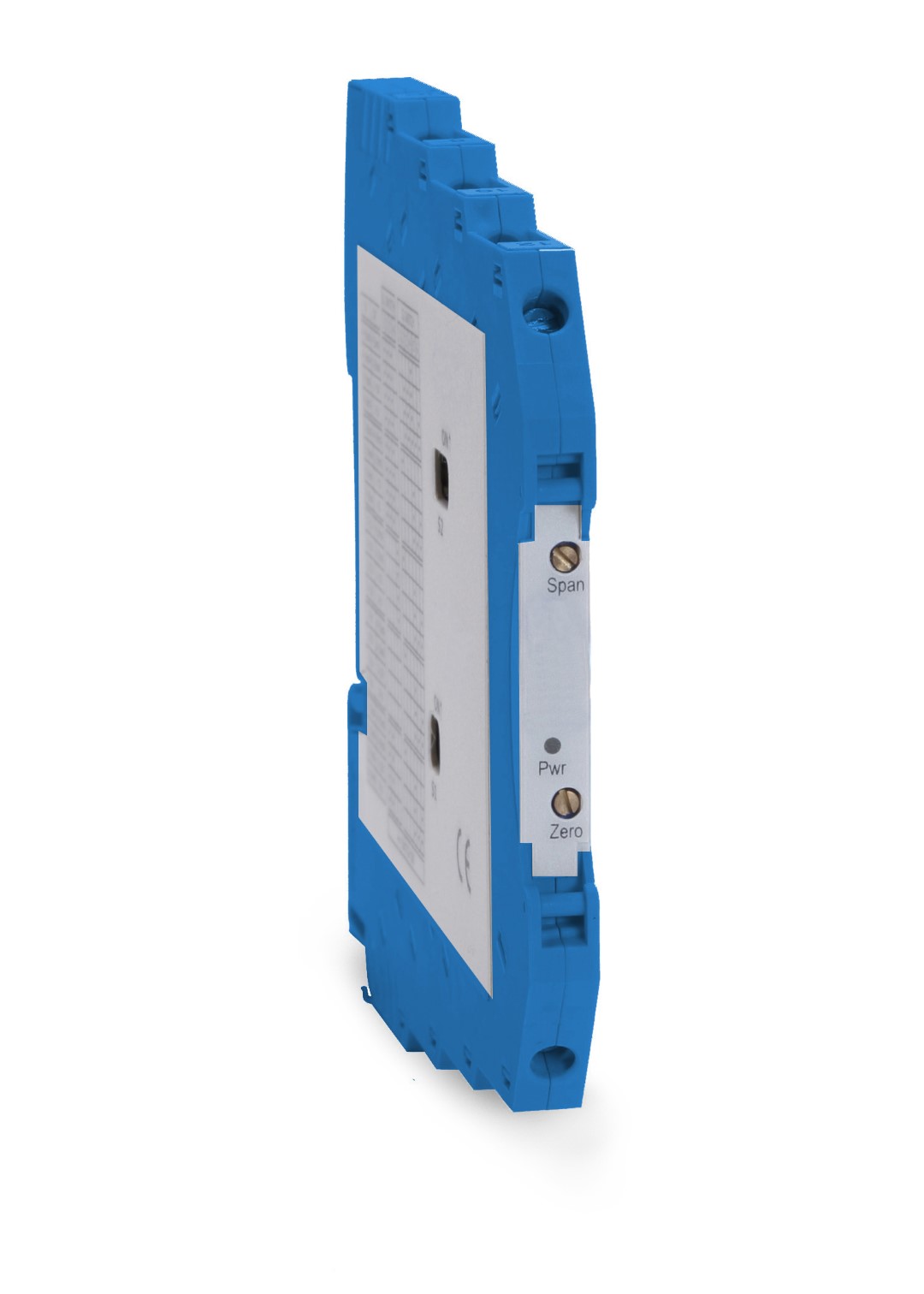

HS 540 white background

Key Features

  • Converts 0-10V to 4-20mA or 4-20ma to 0-10V
  • Isolated
  • Din Rail Mounted
  • Compact design

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Feature

Voltage to Current, or Current to Voltage converter
Inputs

0-10V or 4-20mA
Output

4-20mA or 0-10V
Case Material

Plastic
Mounting

Din Rail TS35 (Top Hat)
Dimensions

102 x 93 x 7 mm / 4 x 3.7 x 0.3 in (H x D x W)
Conductor Size

0.5 to 4.0mm/ 0.02 to 0.2in
Weight

60gms / 2.1 oz. (nom)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

HS-540 connection detailsHS-540 Manual

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
