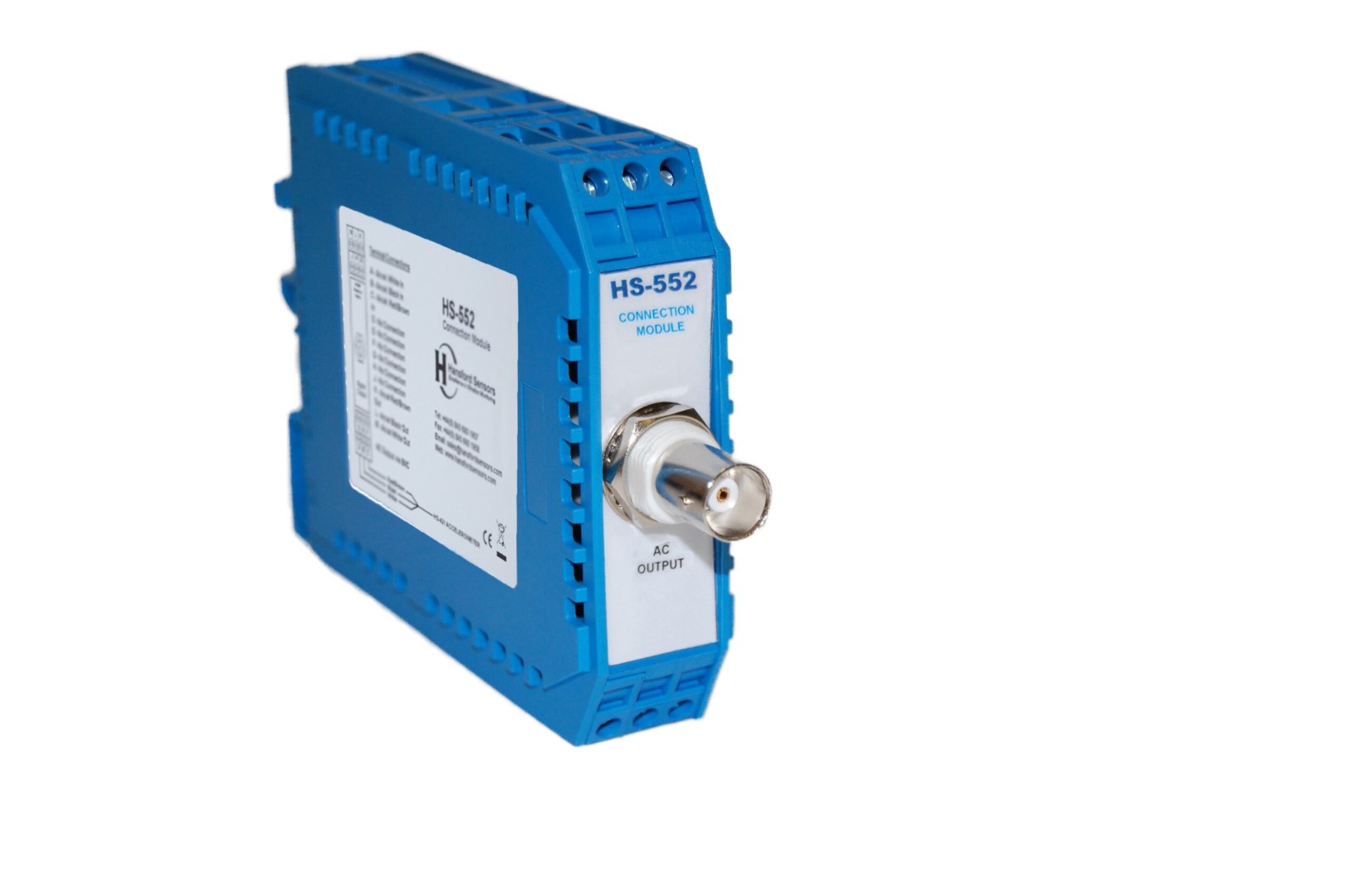

HS-552 Connection Module

AC Output via BNC

HS 552 1 scaled

Key Features

  • Easy Connection
  • Din Rail Mounted
  • Ease of installation

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Feature

Single Point
Inputs

AC Accelerometer
Material

Plastic
Mounting

Din Rail TS35 (Top Hat)
Dimensions

120 x 75 x 23 mm / 4.7 x 3 x 1 mm (H x D x W)
Conductor Size

0.5 to 4.0mm/ 0.02 to 0.2in
Weight

80gms/ 2.8 oz (nom)
Output

Units as Input
Operating Temperature Range

0 to 55 ºC/ 32 to 131ºF
EMC

EN61326-1:2013
Installation Category (IEC664)

II
Equipment Class (IEC536)

III

Datasheets

Metric DatasheetImperial Datasheet

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
