HS-558 4 Channel Interface Module

100mV/g output

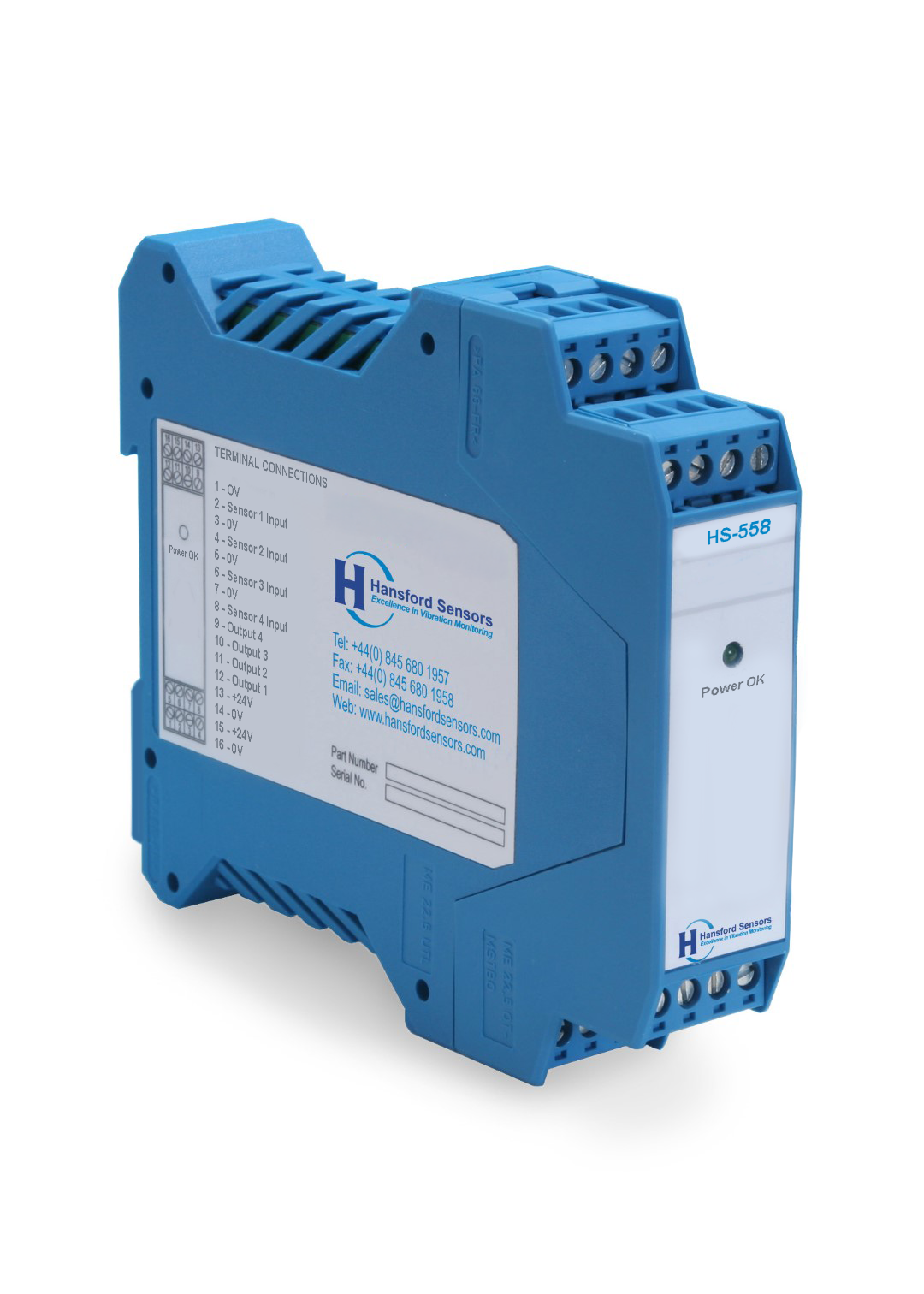

HS-558 4 Channel Interface Module, Monitoring systems

Key Features

  • Current line drive to AC voltage converter
  • 4 Channels
  • TDX Ok function
  • Din Rail mounted

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Inputs

100 mV/g constant current accelerometer
Case Material

Plastic
Mounting

Din Rail TS35 (Top Hat)

Datasheets

Metric Datasheet

Product documentation guides

HS-558 Drawing

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

Quality PolicyEnvironmental Policy
There are no recommended accessories at this time.
