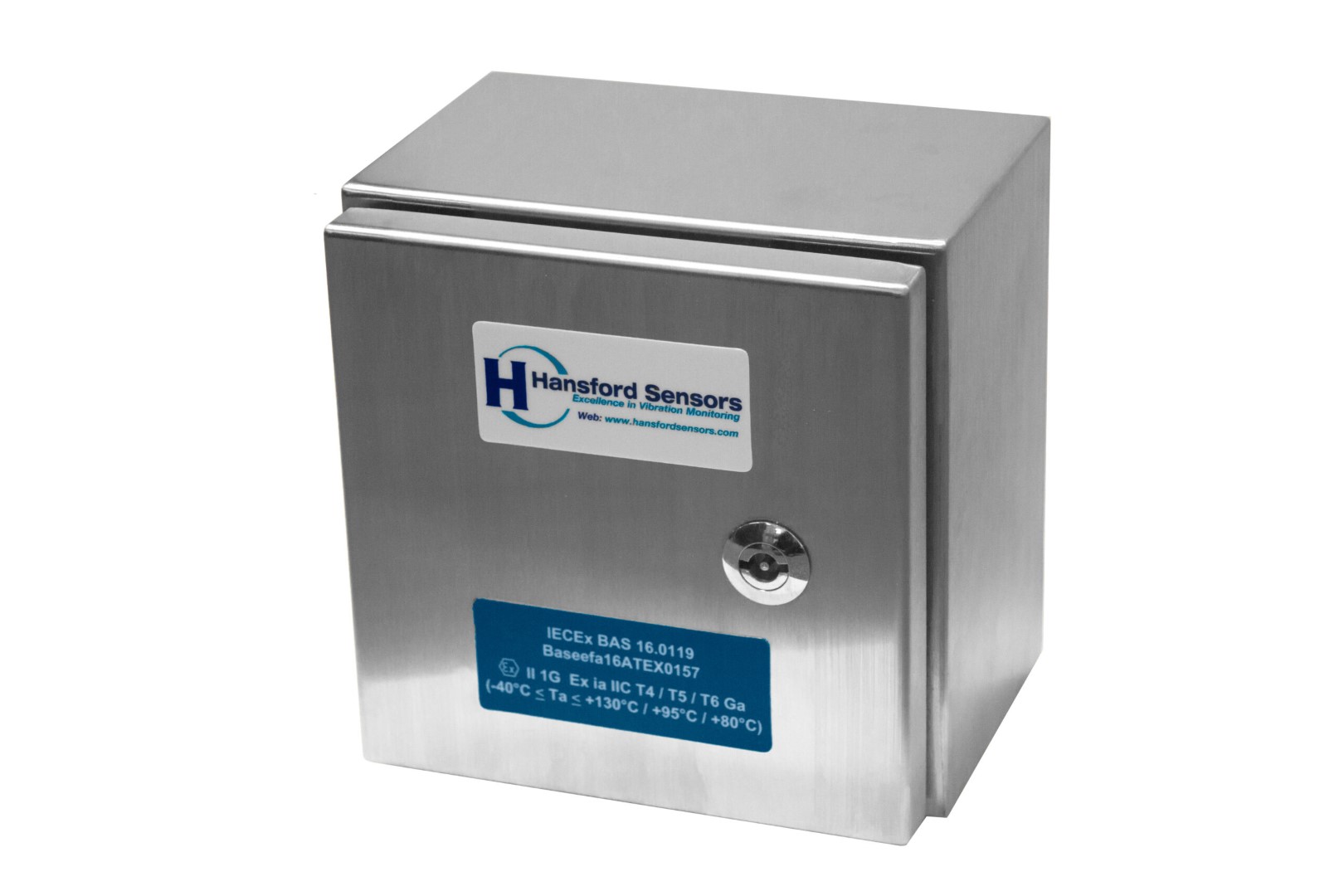

HS-ICE Intrinsically Safe Connection Enclosure
Stainless Steel
Key Features
- Provides a terminal to take readings from accelerometers via a portable data-collector
- Multiple outputs via multiple connectors
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Inputs | Via accelerometer |
|---|---|
| Feature | Intrinsically Safe |
| Mounting Board | PCB panel with Spring Cage Terminals (customisable upon request) |
| Material | 304 Stainless Steel |
| Dimensions | see: ‘How To Order’ table |
| Sealing | IP66 |
| Door | Lock and polyamide key |
| Glanding | Glands supplied but not fitted, Holes are punched for:, Multi input M20 – 3 x ø5.3mm/ ø0.2in, Single input M12 – ø3.5-7mm/ ø0.1-0.3in cable, Single input M20 – ø7-13mm/ ø0.3-0.7in multi-core cable |
| Labelling | Channel locations – other labelling available upon request |
| Mounting | supplied are 4 x Brackets |
| EMC | EN61326-1:2013 |
Datasheets
Metric DatasheetImperial DatasheetProduct documentation guides
ATEX-Glands-CertificationATEX Transfer DocumentBaseefa16ATEX0157-Issue-1Baseefa16ATEX0157IECEx-BAS-16.0119-Issue-1IECEx-BAS-16.0119-00AC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
