HS-SE-SSM Switching Enclosure

Stainless Steel

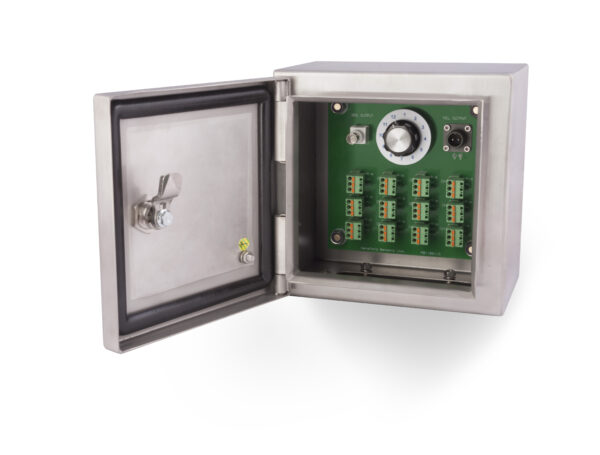

HS SE SSM large scaled

Key Features

  • BNC and 2 Pin MS output
  • Provides a terminal to take readings from accelerometers via a portable data-collector
  • Multiple outputs via one connector
  • Easy to install



How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Feature

Industrial, Multi Sensor
Inputs

Via accelerometer
Output

BNC and 2 Pin MS as standard
Mounting Board

PCB Panel (customisable upon request)
Material

304 Stainless Steel (to be specified in options of ‘How To Order’ table)
Dimensions

see: diagram
Termination

Spring-loaded terminal (no screwdriver required)
Sealing

IP66
Door

Lock and polyamide key
Glanding

Glands supplied but not fitted, Holes are punched for:, Multi input M20 – 3 x ø5.3mm/ ø0.2in, Single input M12 – ø3.5-7mm/ ø0.1-0.3in cable, Single input M20 – ø7-13mm/ ø0.3-0.7in multi-core cable
Labelling

Channel locations – other labelling available upon request
Mounting

supplied are 4 x Brackets
EMC

EN61326-1:2013

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

HS-SE-Series-Connection-Details

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

Quality PolicyEnvironmental Policy
