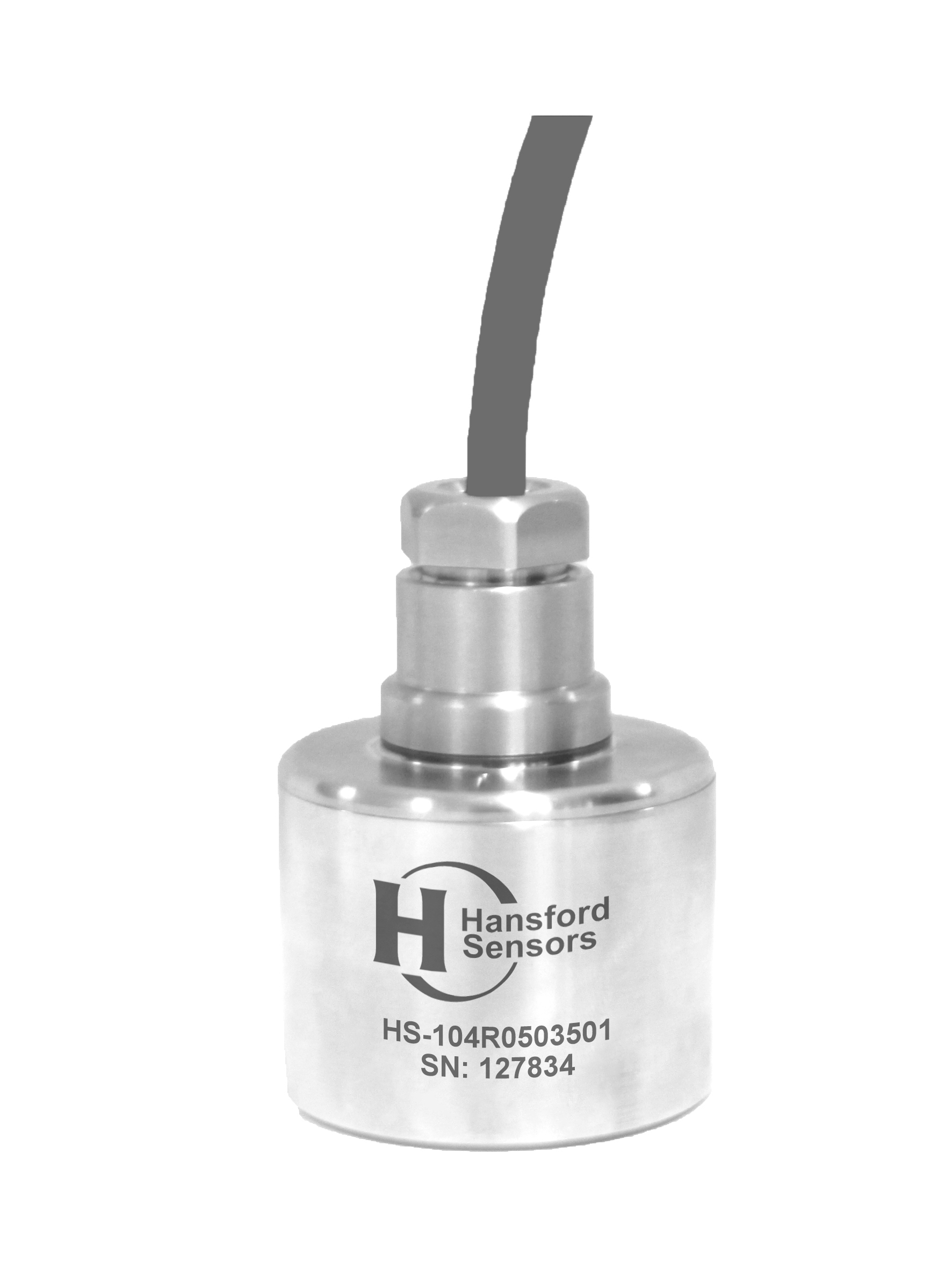

HS-104R – Top Exit – Integral PUR Cable Low Power Triaxial Accelerometer
Three 100mV/g AC acceleration outputs via PUR cable
Key Features
- Low voltage
- Output via three axies
- For use with data collector
- Customisable features
- Shear Crystal Construction
Industries
Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical
Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Operating Temperature Range | -55 to 130ºC, -67 to 266ºF |
|---|---|
| Sealing | IP68 |
| EMC | EN61326-1:2013 |
| Case Material | Stainless Steel |
| Sensing Element/Construction | PZT/Shear |
| Weight | 194gms / 6.8 oz. (nominal) – Stainless Steel |
| Feature | Low Power |
| Connector/Cable Type | PUR Cable |
| Top/Side Entry | Top Entry |
| Output | Single Output |
| Axis | Three (Triaxial) |
Datasheets
Metric DatasheetImperial DatasheetTypical Set-upAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
